PCIe Gigabit Ethernet Fiber Network Interface Cards 1000Base-SX

HomePCIe Gigabit Ethernet Fiber Network Interface Cards 1000Base-SX

PCIe Gigabit Ethernet Fiber Network Interface Cards 1000Base-SX

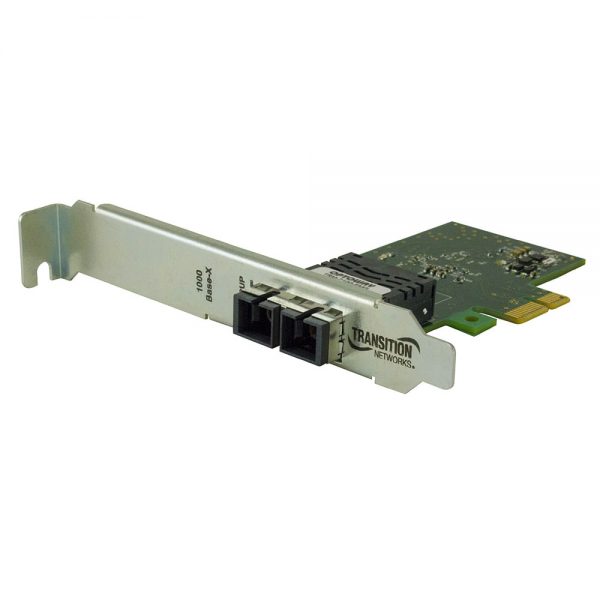

The N-GXE-xx-02 Series is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX standards.
Category:

Description

The N-GXE-xx-02 Series is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX standards. It provides up to 2000 Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, link aggregation, smart load balancing, fail-over, and Wake-on-LAN, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment. An LED indicator on the bracket displays link status, activity and speed.

Additional information

Key Features

Supports PCIe x1 bus
High bandwidth 1000 Mbps network speed (100/1000 Mbps with Auto-Negotiation for SFP version)
Supports full-duplex mode
Supports IEEE 802.3x and IEEE 802.3z Full-Duplex Flow Control
Compliant with PCIe Rev 2.1 Interface
IEEE 802.1Q VLAN Support
Link Aggregation Control Protocol (LACP)
Link Aggregation Smart Switch
Smart Load Balancing (SLB) and Failover
Full Wake-on-LAN Support
Advanced Power Management (APM) Support
Advanced Configuration and Power Interface (ACPI) Specification v2.0c
Magic Packet Wake-up enable
Jumbo frames support up to 9014 bytes
IPv4 and IPv6
IPv4 checksum offloading TCP/UDP
IPv6 support for IP/TCP and IP/UDP receive checksum offload
Transmit Segmentation Offloading (TSO)
Interrupt Handling
Interrupt Throttling Control
Legacy and Message Signaling Interrupt/Extension (MSI/MSI-X)
Intelligent Interrupt Generation
Low Latency Interrupts
PXE and UEFI Boot
RoHS Compliance
Standard bracket attached, low-profile bracket included
Supports identification of NIC when multiple cards are installed
Website

https://www.lantronix.com/products/n-gxe-xx-02-series-2/#product-overview
