LANTIME M100: NTP Time Server with internal Reference Clock for DIN Rail Installations

LANTIME M100 time servers can be installed to provide accurate time to small and medium sized computer networks. This entry level time server synchronizes all systems either NTP- or SNTP-compatible utilizing a built-in Meinberg radio clock as its primary reference time source. A stable and precise oscillator is capable of bridging interferences or a temporary loss of reception. Its compact form factor offers an ideal solution to network time synchronization needs in industrial and power generation/distribution networks.

Category:

Description

Product Description

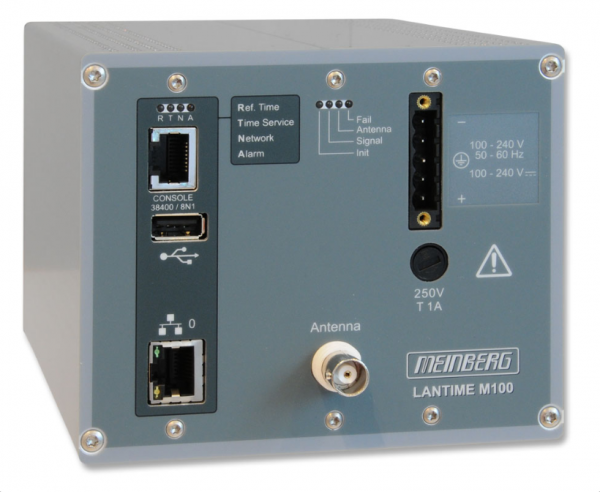

Three LEDs (green/red) indicate the status of the three main components: Reference Time (e.g. GPS), Time Synchronization Service (NTP) and Network (Link status). A fourth red LED is labeled ALARM and can be configured to signal any event that is covered by the notification handling routines.

The configuration of the system can be done by using a standard web browser for accessing the extensive but straightforward html interface. Alternatively a text based and menu driven setup utility can be started from the shell prompt after logging into the unit via Telnet or SSH. Initial configuration can be performed using the RS232 console port and a terminal program.

The LANTIME M100/GPS is equipped with a high precision “TCXO” (oscillator option: up to “OCXO HQ”). Please check our oscillator optionspage for technical specifications. The oscillator determines the holdover characteristics (e.g. when the received signal is disturbed or jammed).

Additional information

Key Features

Selectable Reference Sources:
GPS: Satellite receiver for the Global Positioning System
GNS: Combined GPS/GLONASS/Galileo/BeiDou satellite receiver (L1 frequency band), can also be used for mobile applications
GNS-UC: GPS and Galileo Satellite Receiver with Up-Converter for Meinberg GPS Antenna/Converter
PZF: DCF77 correlation receiver for middle europe
Synchronization of NTP and SNTP compatible clients
Web-based status and configuration interface (Demo) and console-based graphical configuration utility
Supported net protocols: IPv4, IPv6, NTP, (S)NTP, DAYTIME, DHCP, HTTP, HTTPS, FTP, SFTP, SSH, SCP, SYSLOG, SNMP, TIME, TELNET
USB Port for installing firmware updates, locking frontpanel menu access and backup/restore of configuration and log files
Meinberg GPS Antenna/Converter Unit connected with up to 300m of standard coaxial cable RG58
