Managed Layer 2 Gigabit Ethernet Switch (20) 10/100/1000Base-T Ports + (4) 100/1000Base-X SFP/RJ-45 Combo Ports + (2) 100/1000Base-X SFP Slots

Managed Layer 2 Gigabit Ethernet Switch (20) 10/100/1000Base-T Ports + (4) 100/1000Base-X SFP/RJ-45 Combo Ports + (2) 100/1000Base-X SFP Slots

switch is a high performance managed PoE+ switch with (48) 10/100/1000 copper ports and (4) dual speed 1G/10G SFP+ slots.
Category:

Description

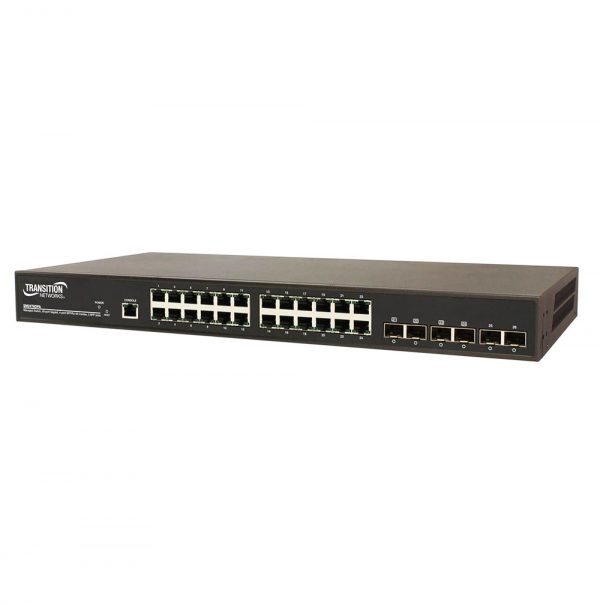

This switch is a high performance Layer 2 managed switch with 52Gbps switching capacity. It provides (20) 10/100/1000 copper ports, (4) 100/1000 SFP/RJ-45 Combo Ports, and (2) 100/1000  dual speed SFP slots.

Additional information

Key Features

Support IPv4/IPv6 dual protocol stack
Support Jumbo Frame up to 9K bytes
Authentication – RADIUS IEEE 802.1X, TACACS+
Security – Support SSH/SSL
Port based or tagged (IEEE 802.1Q) VLAN, MAC based VLAN, Management VLAN and Private VLAN Edge
DHCP Relay including option 82
L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL
LLDP (Link Layer Discovery Protocol)
IEEE 802.3az Energy Efficiency
IP Source Guard, Port Security
DHCP Server
Single IP Management
Device Management System (DMS): Graphic Monitoring, Grouping, Traffic Monitoring

Software Features

Management: Web Management, SNMP V1/V2c/V3, Telnet, CLI
Port Trunk: Supports IEEE 802.3ad port trunk with link aggregation control protocol (LACP) and static trunk
IGMP: Support IGMP Snooping V1/V2/V3, GVRP, IGMP Proxy, and IGMP Querier
Quality of Service: Supports 8 egress queues per port enable differentiated management of up to 8 traffic types across the stack. Strict priority and WRR
Spanning Tree: Supports IEEE 802.1s MSTP, IEEE 802.1w RSTP and IEEE 802.1D STP Compliant
VLAN: Port Based VLAN, IEEE 802.1Q tag-based, up to 4k VLAN entries, QinQ, MAC-based VLAN, Private VLAN, Guest VLAN, Voice VLANs and Management VLAN
IPv4 / IPv6 Static Routing
Firmware Update, configure backup/restore through TFTP and HTTP
